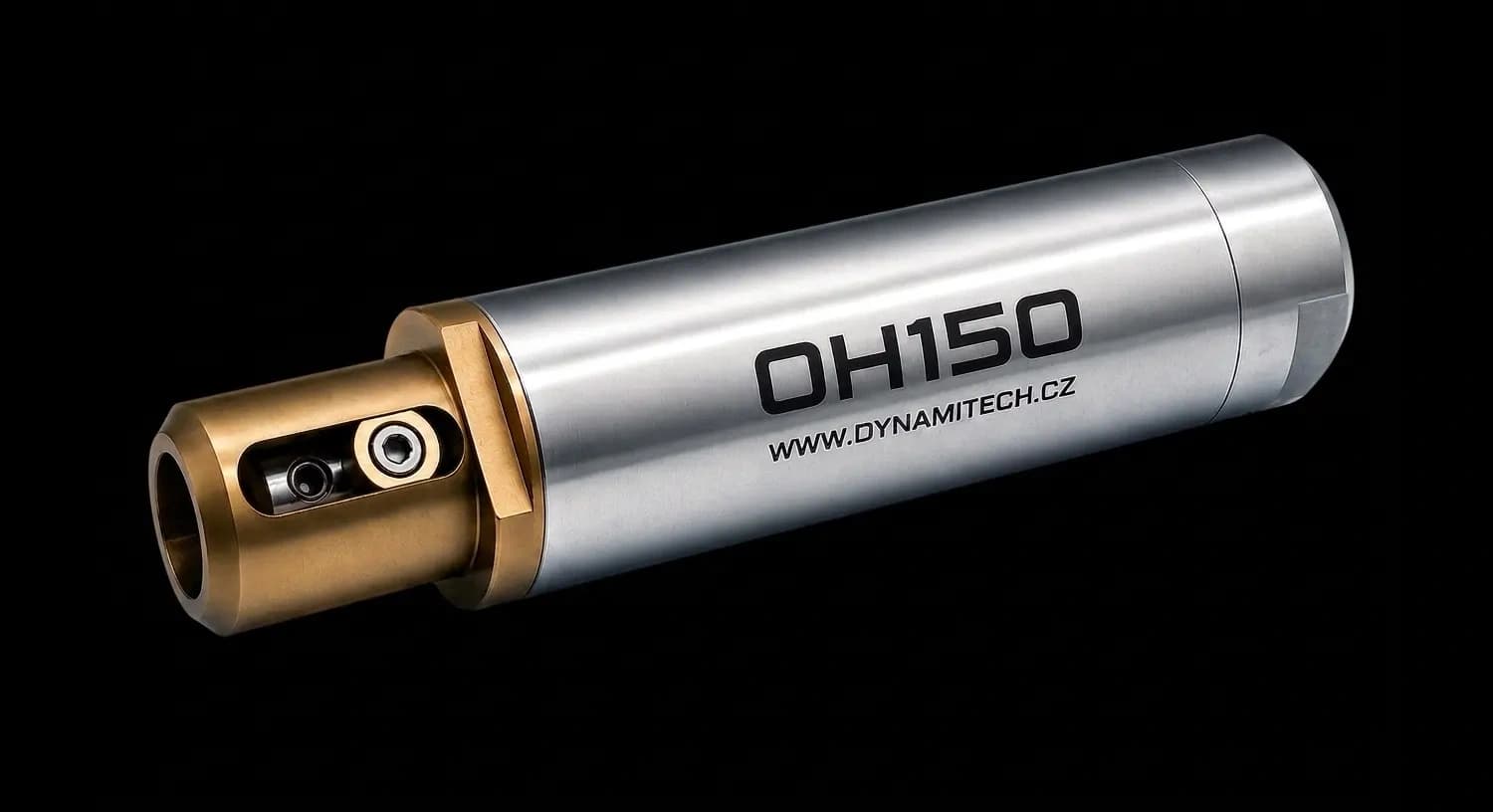

OH150 Pneumatic Oscillating Head
Pneumatic oscillating head for cutting with an oscillating tool
€1250In stock
Key Specifications
- Operating frequency
- 150 Hz
- Amplitude height
- 4 - 6 mm
- Operating pressure
- 5 - 6 bar
- Tool clamping shank
- Ø6 mm
- Weight
- 1050 g
Description
The OH150 pneumatic oscillating head is designed for cutting with an oscillating cutting tool. It is suitable for installation in automatic lines, CNC cutting plotters, special-purpose machines, robots, etc. The oscillating tool can productively cut a wide range of materials such as paper, cardboard, vinyl, textiles, foam materials, Herex, Airex, prepreg fabrics, insulating materials, carpets, floor coverings, sealing materials, rubber, etc.

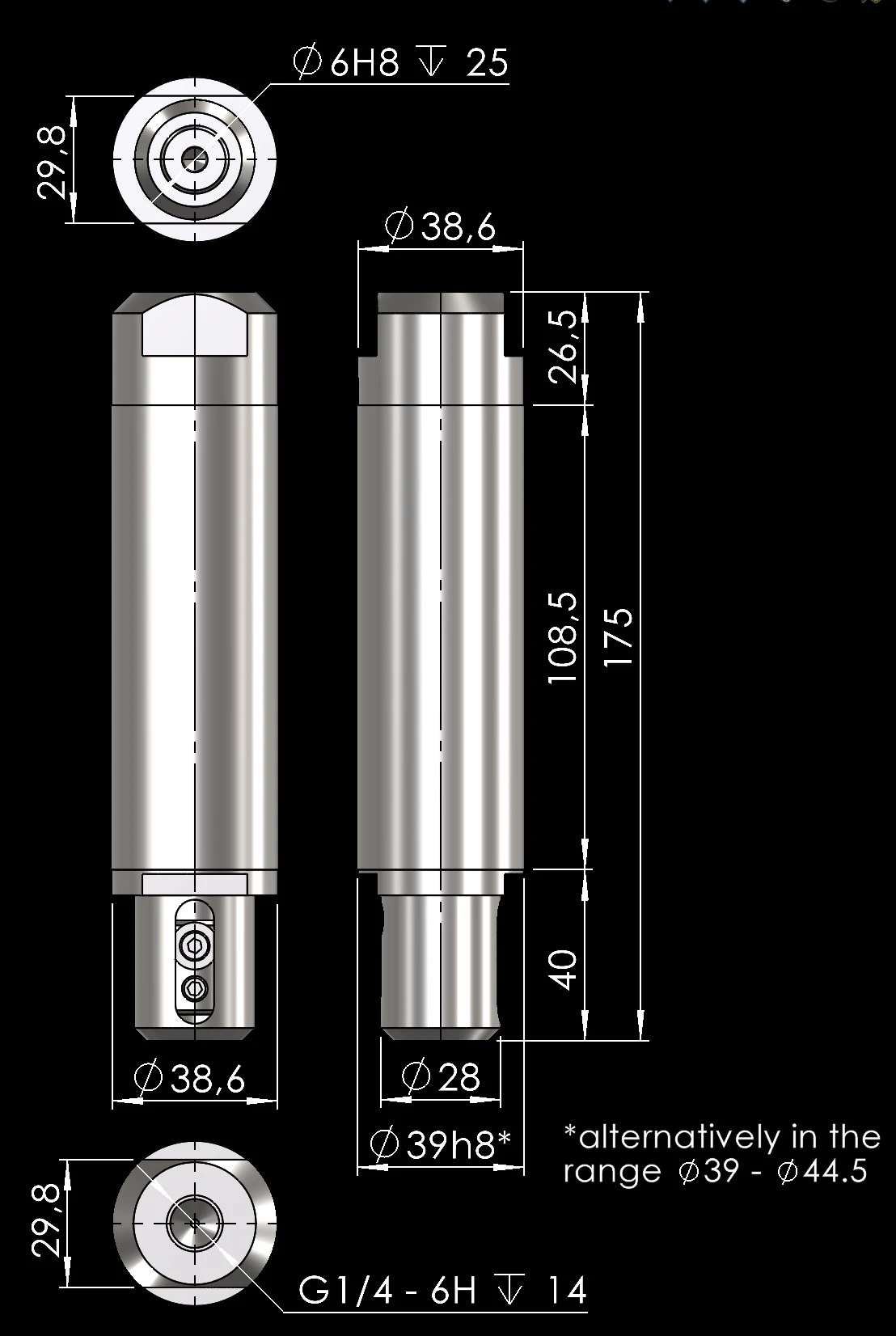

The cylindrical clamping surface is standardly Ø39h8; on request, a clamping diameter can be manufactured anywhere in the range of 39 – 44.5 mm.
Package Contents
1× OH150 oscillating head
Ø39h8 clamping surface, 150 Hz frequency, 4 – 6 mm amplitude
1× Operating tool set
For changing and clamping a tool with a Ø6 mm shank
Operation requires lubricated compressed air at 5 – 6 bar and a cutting tool with a Ø6 mm shank.
Technical Specifications
Technical Parameters
| Operating frequency | 150 Hz |
|---|---|
| Amplitude height | 4 - 6 mm |
| Operating pressure | 5 - 6 bar |
| Air consumption | 30 l/min |
| Tool clamping shank | Ø6 mm |
| Driving medium | lubricated compressed air |
| Weight | 1050 g |
