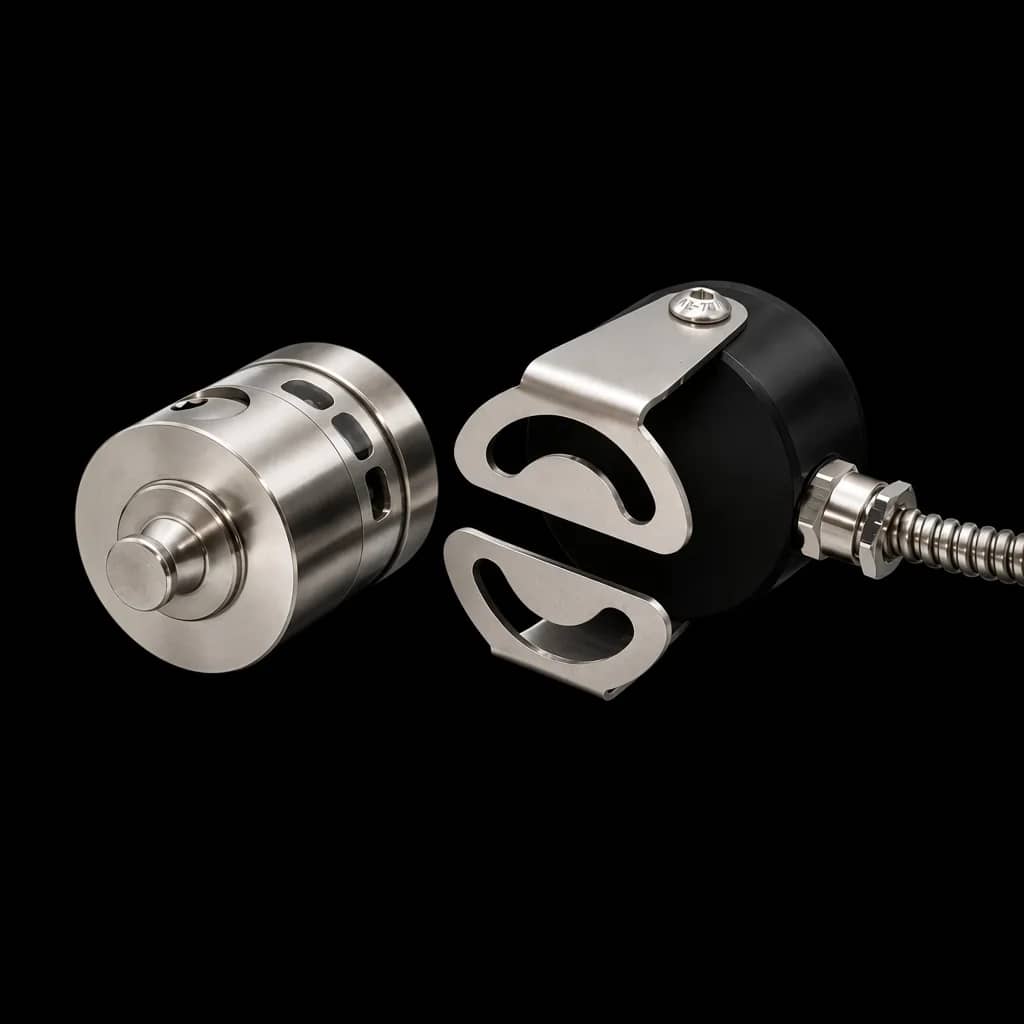

TP1-IR-PH Touch Probe – Wireless touch probe, receiver cable protected by a flexible conduit
Wireless

TP1-IR-PH Touch Probe

Wireless touch probe, receiver cable protected by a flexible conduit

€1095
Documentation

Key Specifications

Measuring principle
Kinematic 3-point seating
Repeatability (stylus L30 mm)
0.005 mm
Measuring direction
±X, ±Y, -Z
Measuring force XY / Z (stylus L30 mm)
2 N / 6 N
Maximum deflection XY / Z
±10° / 4.5 mm
Maximum measuring speed
2 m/min

Description

The TP1-IR wireless touch probe is used for precise workpiece setup and tool measurement on CNC machine tools or as a precision limit switch in automation. Signal transmission between the probe and receiver is via infrared light. The probe can be fitted with any touch stylus with M4 thread. To install the TP1 touch probe in the machine spindle (use as a workpiece probe), the CS16 clamping shank must be purchased separately — it allows precise centering of the stylus while the spindle rotates. For mounting the TP1 touch probe on the machine table (use as a tool probe), the BP58 base plate is available. When purchasing the TP1 touch probe together with the CS16 clamping shank, BP58 base plate and any touch stylus, you will receive a complete pre-centered assembly ready for immediate installation without further adjustment. On the PH version the receiver cable is protected by a flexible conduit.

Package Contents

  • 1× TP1-IR touch probe (transmitter)

    Kinematic 3-point seating, 0.005 mm repeatability, IP65

  • 1× TP1-IR-PH receiver with bracket

    5 m cable protected by a flexible conduit, 4 × 0.25 mm², Touch and Ready output signals

  • 1× SAFT LS14250 battery

    Lithium 3.6 V / 1.2 Ah, ≈ 800 days in standby

  • 1× Adjustment tool set

    For centering the stylus and adjusting the probe

An M4 stylus, the CS16 clamping shank and the BP58 base plate are ordered separately.

Wiring

Signal state
Signal type
Output signal
SW 1 Down, SW 2 Down, SW 3 Up1Down2Down3Up
Wire marking
TP1-IRwhiteGNDbrownVCCyellowTOUCHgreenREADY

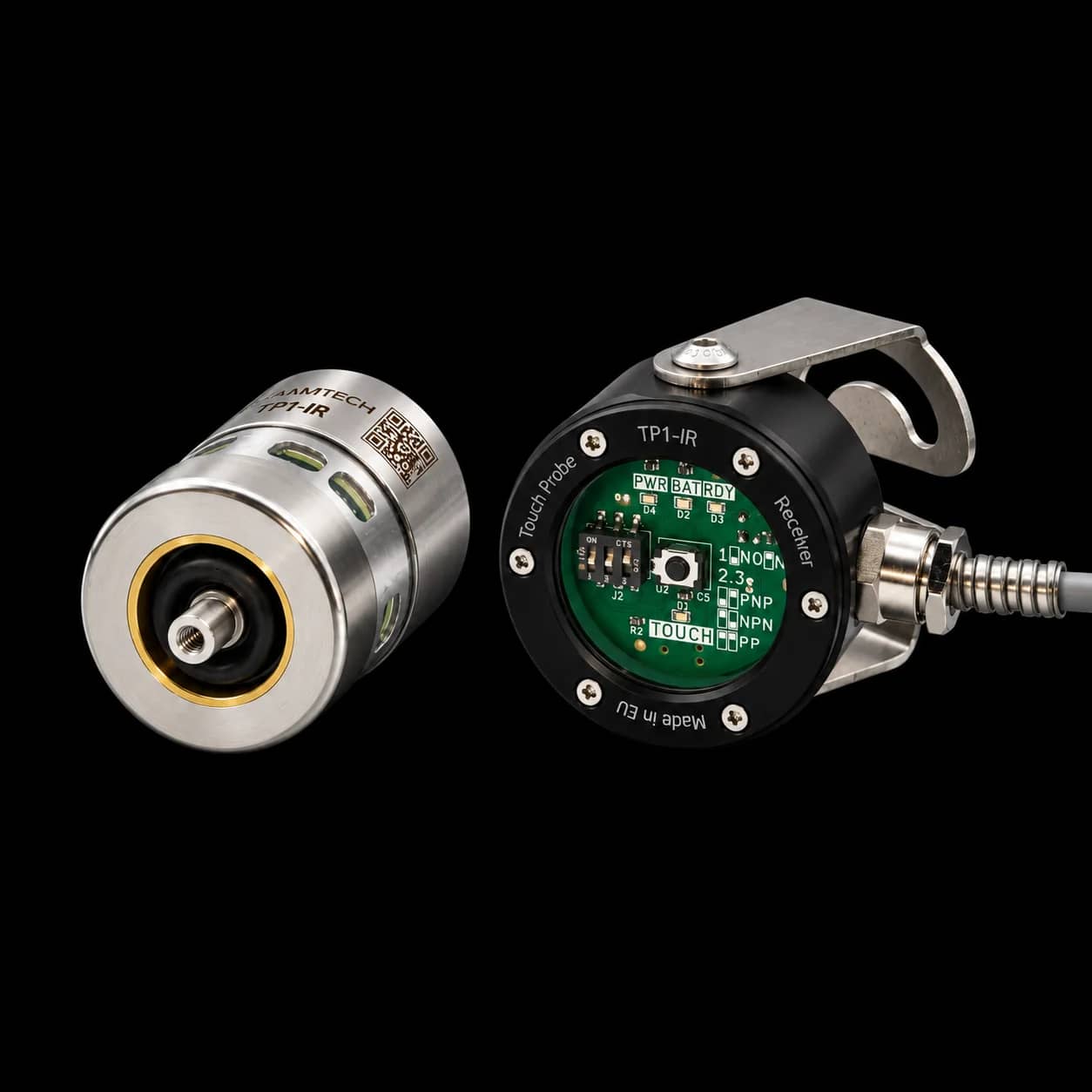

Set on the switch on the receiver’s board, where the legend is printed too.

Output signal timing

051015t (ms)touchreadystylus
Timeline of the Touch and Ready outputs against the deflection of the stylus.

Operating Settings

The probe has two modes: standby and operating. Deflecting the stylus wakes it into operating mode and activates READY; after a set idle time it returns to standby.

P1

Duty cycle of the IR LED

Radiated power, set to the distance from the receiver. A higher duty cycle shortens battery life; the quoted range and battery figures are for the factory value.

  • 10 %P1 = 1
  • 20 %FactoryP1 = 2
  • 30 %P1 = 3
  • 40 %P1 = 4
  • 50 %P1 = 5
P2

Transition to standby

Idle time from the last deflection before the probe sleeps. In standby it does not transmit and READY is inactive.

  • 1 minFactoryP2 = 1
  • 2 minP2 = 2
  • 10 minP2 = 3
  • 20 minP2 = 4
