Wired

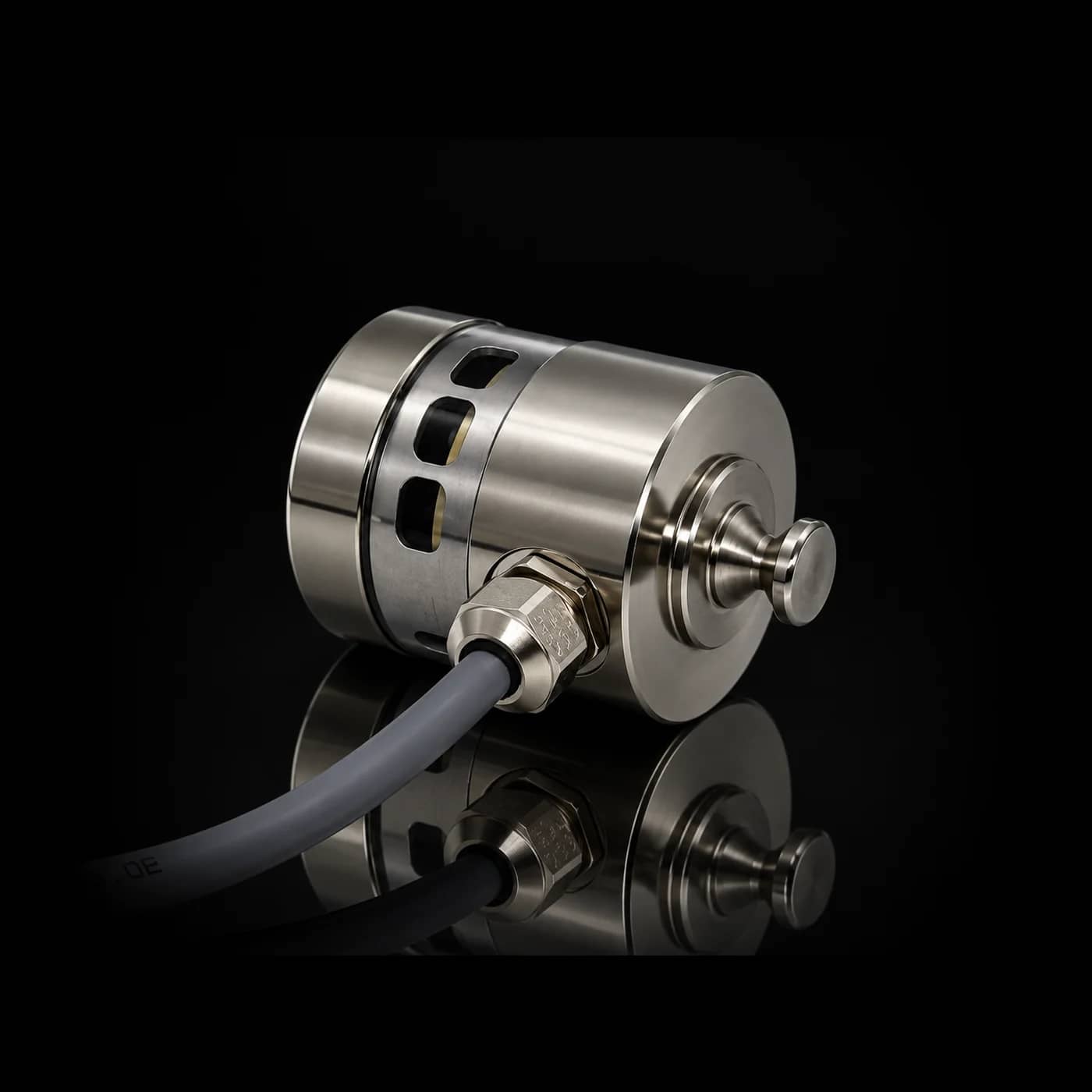

TP1-W-R Touch Probe

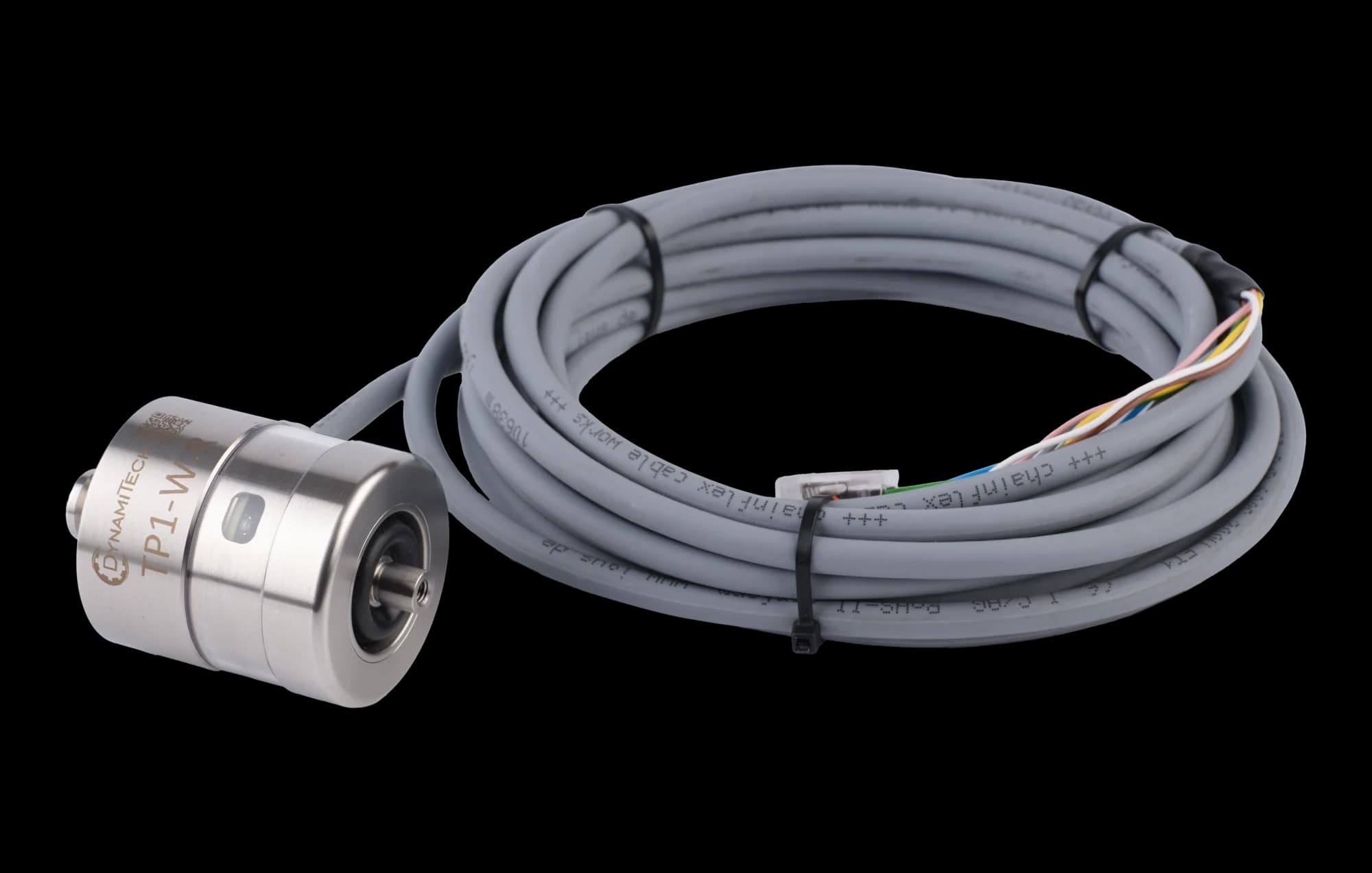

Touch probe with radial cable
€780In stock
Key Specifications
- Measuring principle
- Kinematic 3-point seating
- Repeatability (stylus L30 mm)
- 0.005 mm
- Measuring direction
- ±X, ±Y, -Z
- Measuring force XY / Z (stylus L30 mm)
- 2 N / 6 N
- Maximum deflection XY / Z
- ±10° / 4.5 mm
- Maximum measuring speed
- 2 m/min
Description
The TP1-W-R touch probe is used for precise workpiece setup and tool measurement on CNC machine tools or as a precision limit switch in automation. On this model the cable exits radially. The probe can be fitted with any touch stylus with M4 thread. To install the TP1 touch probe in the machine spindle (use as a workpiece probe), the CS16 clamping shank must be purchased separately — it allows precise centering of the stylus while the spindle rotates. For mounting the TP1 touch probe on the machine table (use as a tool probe), the BP58 base plate is available. When purchasing the TP1 touch probe together with the CS16 clamping shank, BP58 base plate and any touch stylus, you will receive a complete pre-centered assembly ready for immediate installation without further adjustment.
Package Contents
1× TP1-W-R touch probe
Kinematic 3-point seating, 0.005 mm repeatability, IP65
1× Connection cable, 5 m, radial exit
7 × 0.25 mm², Touch output signal, 5 – 24 VDC supply
1× Adjustment tool set
For centering the stylus and adjusting the probe
An M4 stylus, the CS16 clamping shank and the BP58 base plate are ordered separately.

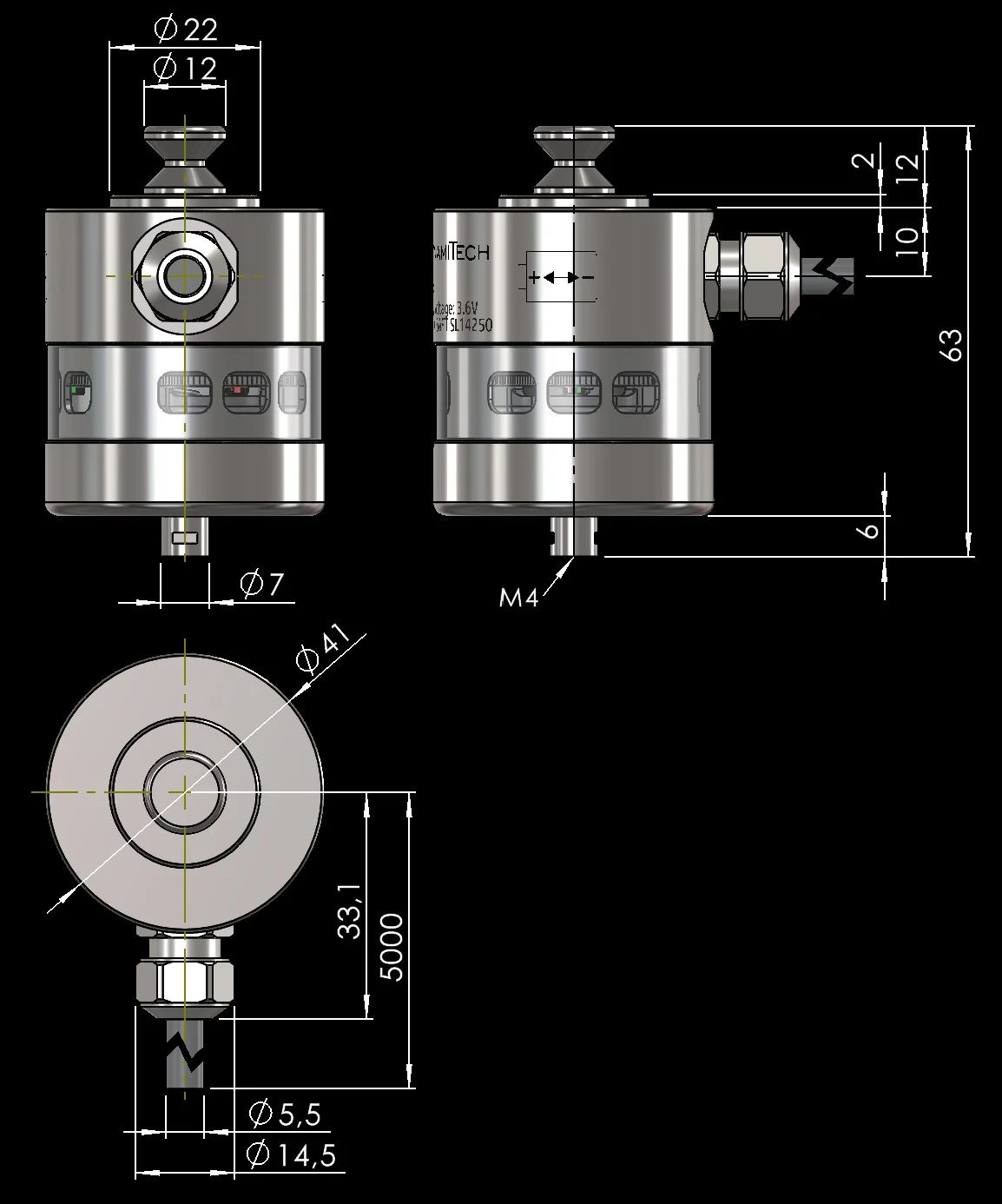

Technical Specifications
Product classification
| Product family | TP1 |
|---|---|
| Product type | Touch Probe |
| Connection | Wired |
| Cable | Radial |
| Cable protection | Standard |
Touch probe TP1-W-R
| Measuring principle | Kinematic 3-point seating |
|---|---|
| Measuring direction | ±X, ±Y, -Z |
| Measuring force XY / Z (stylus L30 mm) | 2 N / 6 N |
| Maximum deflection XY / Z | ±10° / 4.5 mm |
| Repeatability (stylus L30 mm) | 0.005 mm |
| Maximum measuring speed | 2 m/min |
| Weight | 260 g |
| Protection rating | IP65 |
| Supply voltage VCC | 5 – 24 VDC |
| Power consumption | < 100 mA |
| Maximum output current | 300 mA |
| Cable length | 5 m |
| Connection cable | 7 x 0.25 mm² |
| Storage temperature | -20 ... +70 °C |
| Operating temperature | +10 ... +40 °C |
| Output signals | Touch |
