Wired
TP1-W-R-PH Touch Probe

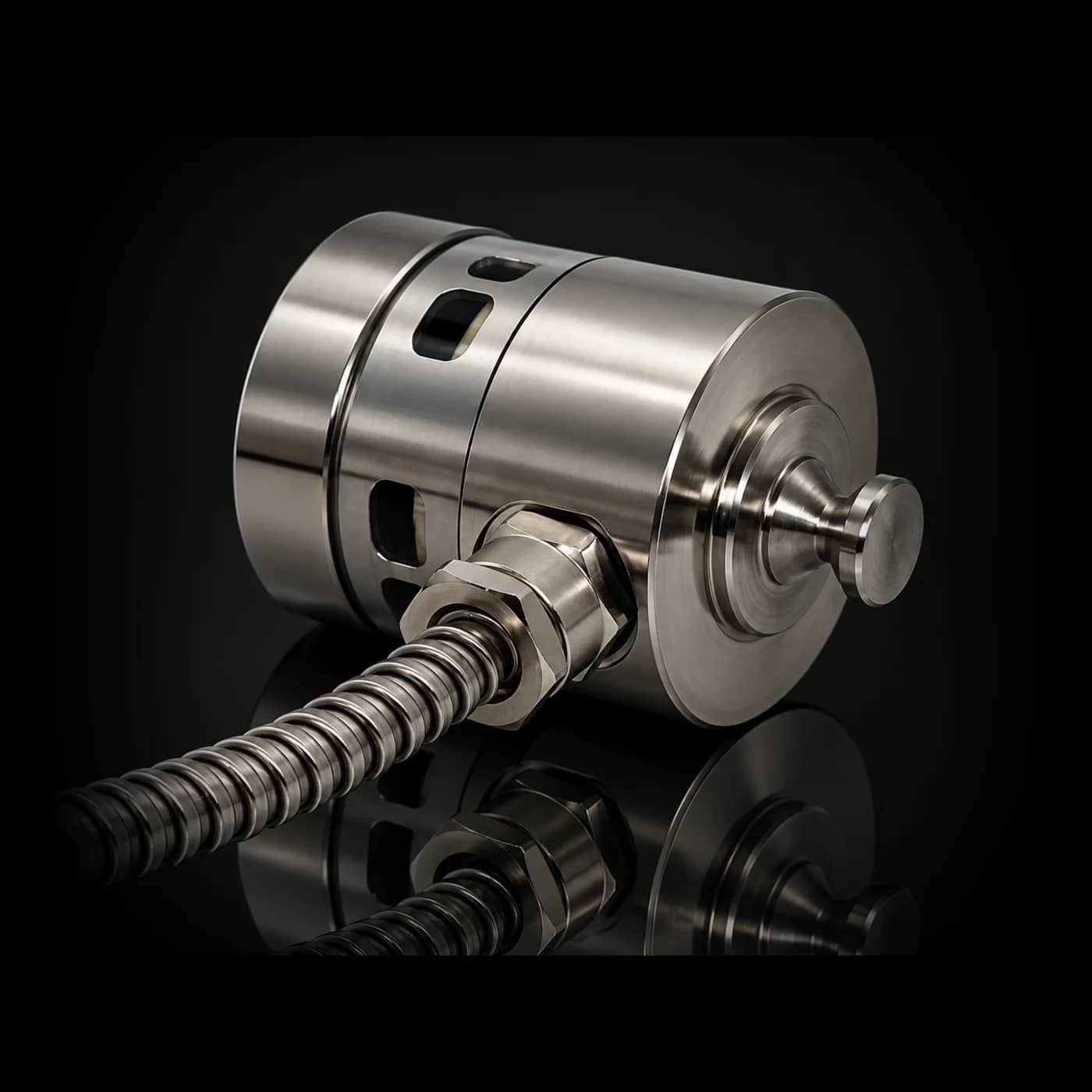

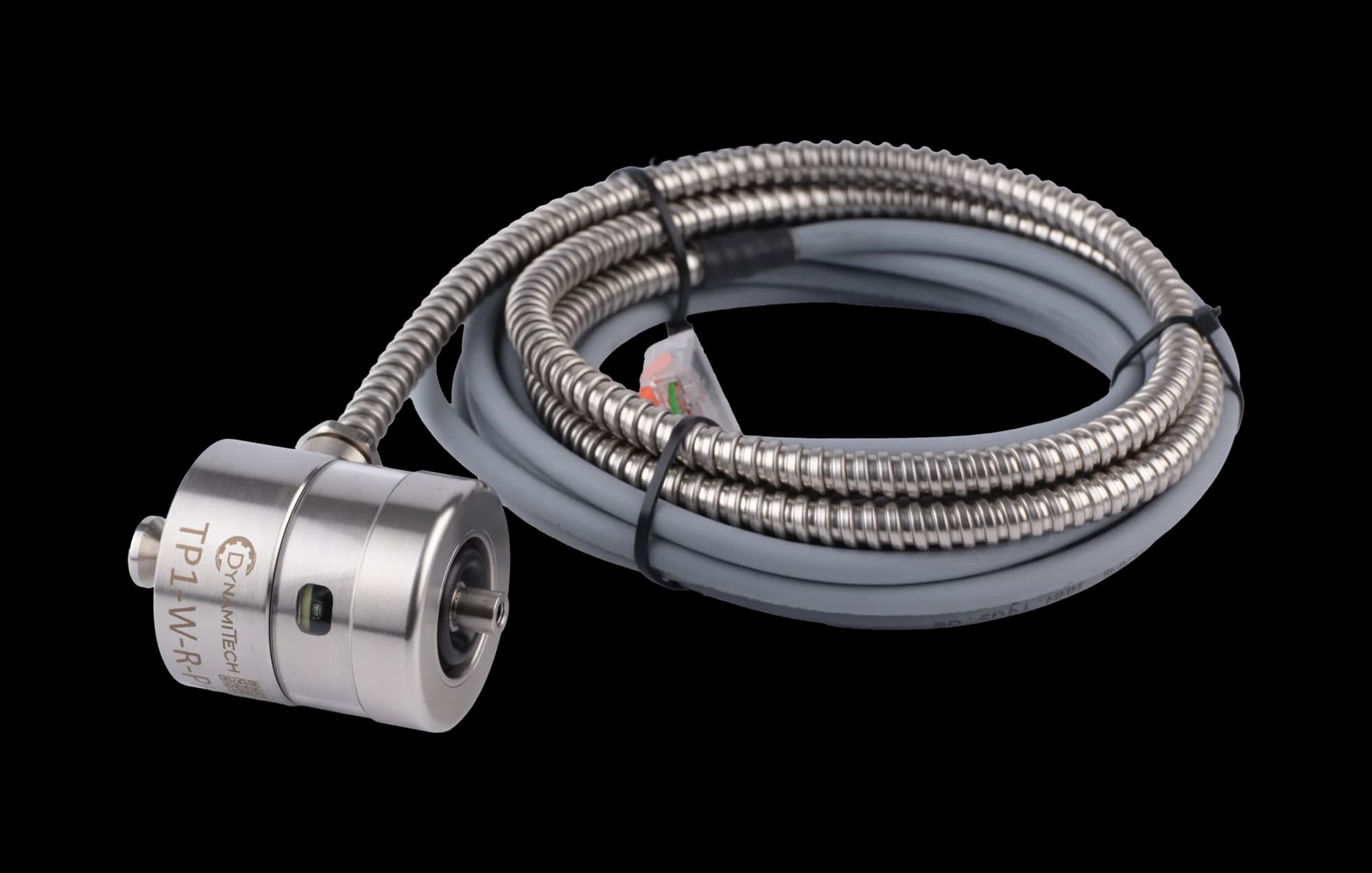

Touch probe with radial cable protected by a flexible conduit
€820In stock
Key Specifications
- Measuring principle
- Kinematic 3-point seating
- Repeatability (stylus L30 mm)
- 0.005 mm
- Measuring direction
- ±X, ±Y, -Z
- Measuring force XY / Z (stylus L30 mm)
- 2 N / 6 N
- Maximum deflection XY / Z
- ±10° / 4.5 mm
- Maximum measuring speed
- 2 m/min
Description

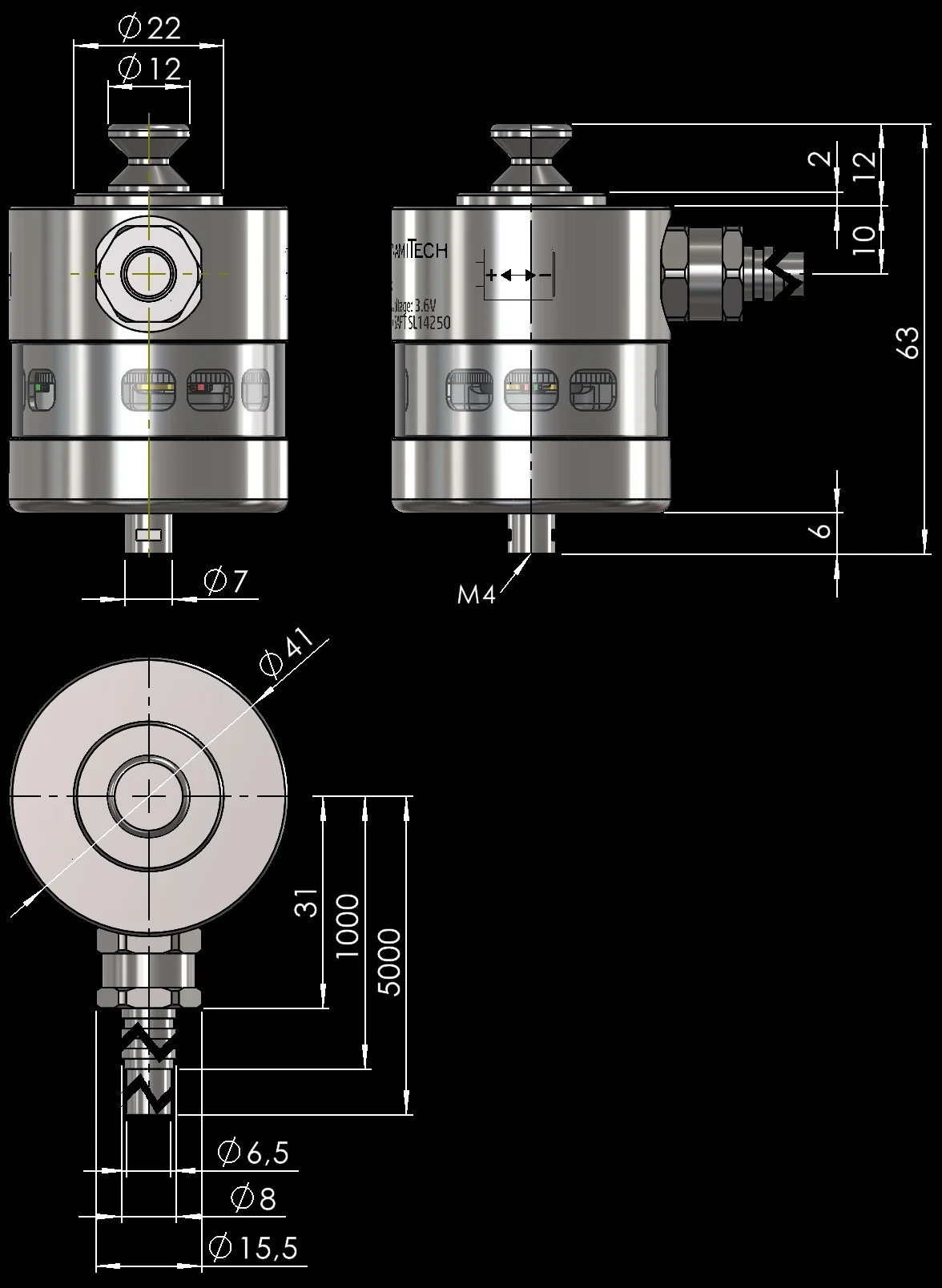

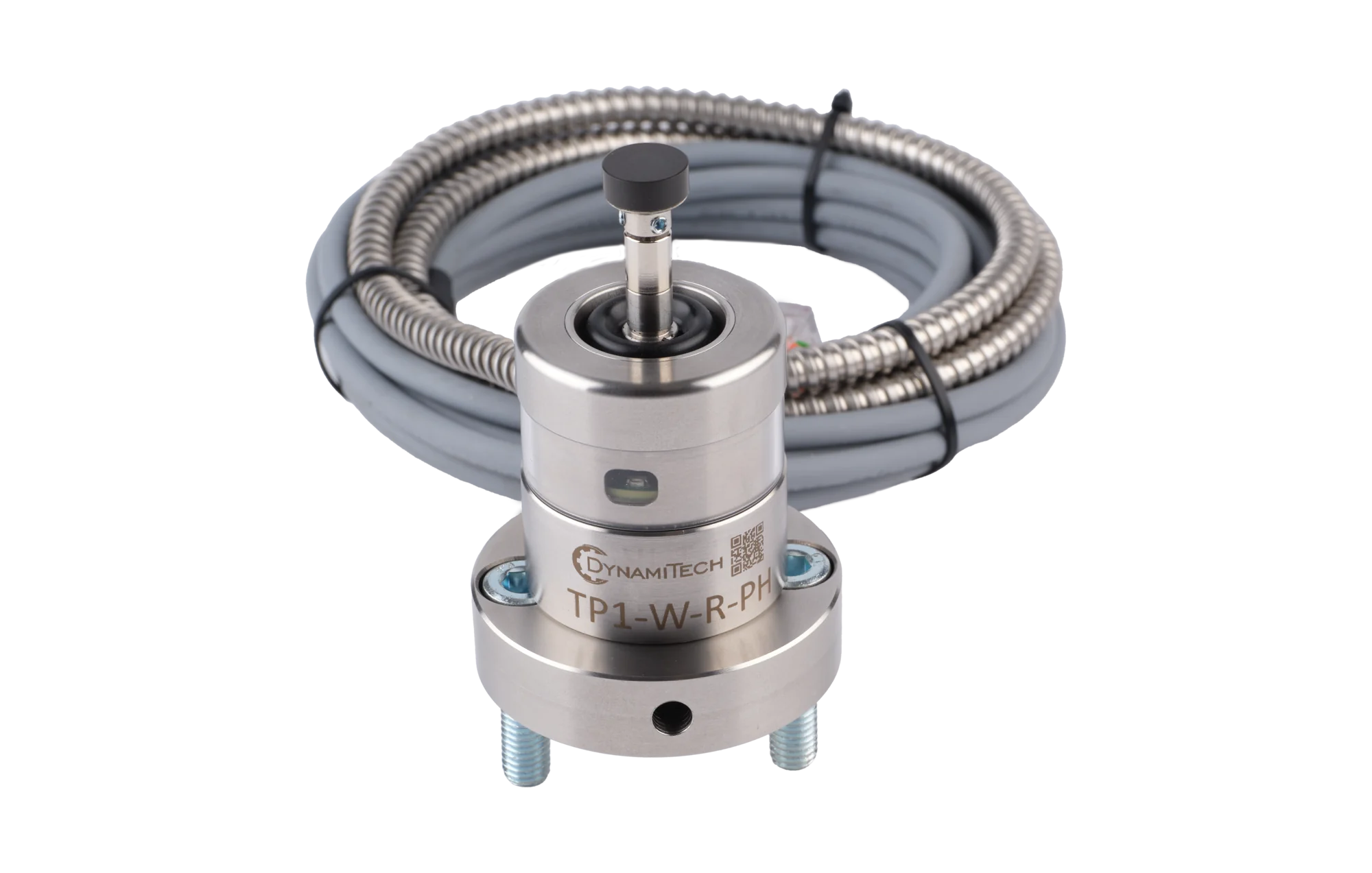

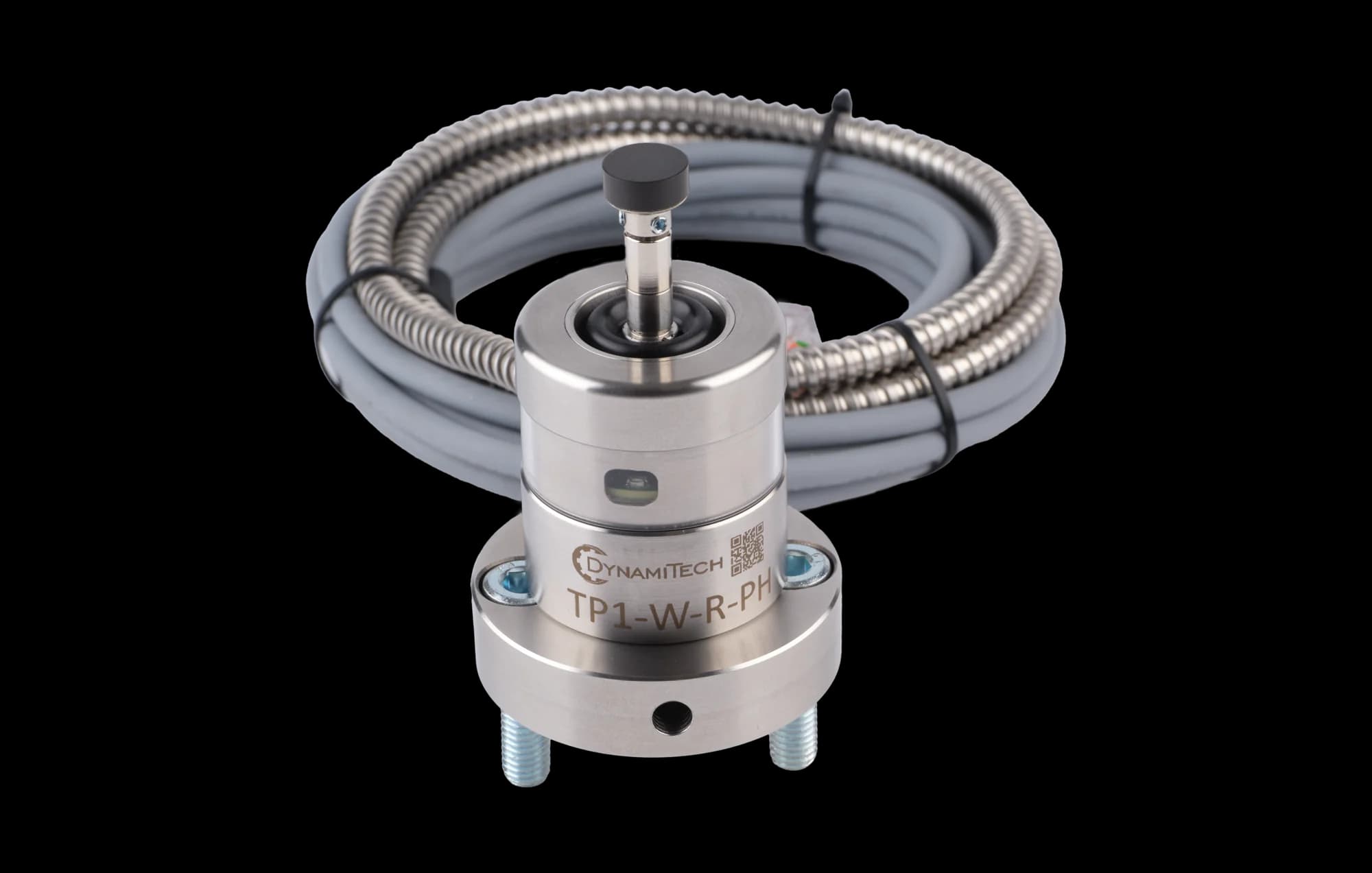

The TP1-W-R-PH touch probe is used for precise workpiece setup and tool measurement on CNC machine tools or as a precision limit switch in automation. On this model the cable exits radially and is protected for 1 m from the probe by a stainless steel flexible conduit. The probe can be fitted with any touch stylus with M4 thread. To install the TP1 touch probe in the machine spindle (use as a workpiece probe), the CS16 clamping shank must be purchased separately — it allows precise centering of the stylus while the spindle rotates. For mounting the TP1 touch probe on the machine table (use as a tool probe), the BP58 base plate is available. When purchasing the TP1 touch probe together with the CS16 clamping shank, BP58 base plate and any touch stylus, you will receive a complete pre-centered assembly ready for immediate installation without further adjustment.
Package Contents
1× TP1-W-R-PH touch probe
Kinematic 3-point seating, 0.005 mm repeatability, IP65
1× Connection cable, 5 m, radial exit
Protected for 1 m from the probe by a stainless steel flexible conduit, 7 × 0.25 mm²
1× Adjustment tool set
For centering the stylus and adjusting the probe
An M4 stylus, the CS16 clamping shank and the BP58 base plate are ordered separately.
Technical Specifications
Product classification
| Product family | TP1 |
|---|---|
| Product type | Touch Probe |
| Connection | Wired |
| Cable | Radial |
| Cable protection | Flexible conduit |
Touch probe TP1-W-R-PH
| Measuring principle | Kinematic 3-point seating |
|---|---|
| Measuring direction | ±X, ±Y, -Z |
| Measuring force XY / Z (stylus L30 mm) | 2 N / 6 N |
| Maximum deflection XY / Z | ±10° / 4.5 mm |
| Repeatability (stylus L30 mm) | 0.005 mm |
| Maximum measuring speed | 2 m/min |
| Weight | 260 g |
| Protection rating | IP65 |
| Supply voltage VCC | 5 – 24 VDC |
| Power consumption | < 100 mA |
| Maximum output current | 300 mA |
| Cable length | 5 m |
| Connection cable | 7 x 0.25 mm² |
| Storage temperature | -20 ... +70 °C |
| Operating temperature | +10 ... +40 °C |
| Output signals | Touch |
