Wireless

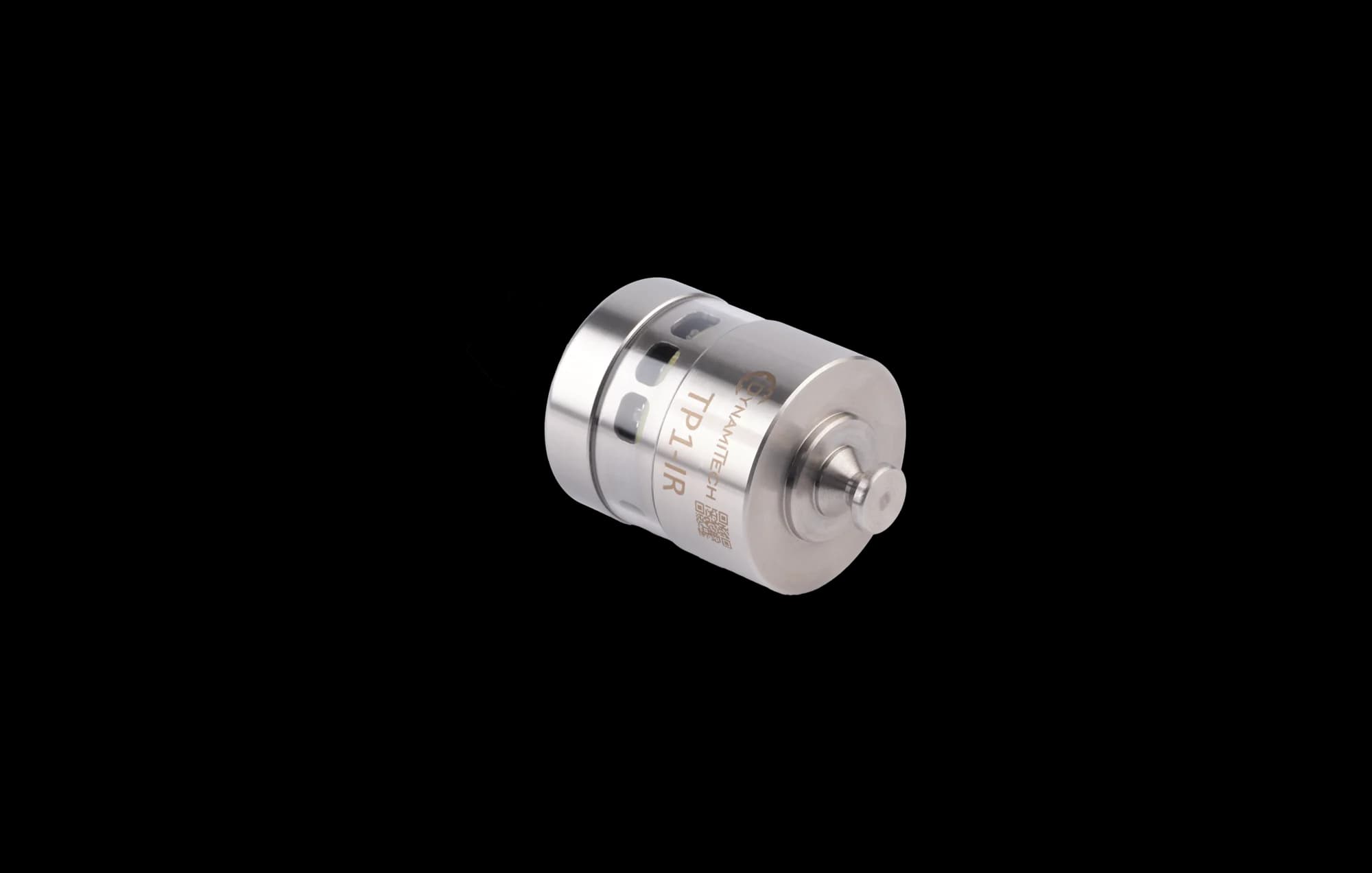

TP1-IR Touch Probe
Wireless touch probe
€995In stock
Key Specifications
- Measuring principle
- Kinematic 3-point seating
- Repeatability (stylus L30 mm)
- 0.005 mm
- Measuring direction
- ±X, ±Y, -Z
- Measuring force XY / Z (stylus L30 mm)
- 2 N / 6 N
- Maximum deflection XY / Z
- ±10° / 4.5 mm
- Maximum measuring speed
- 2 m/min
Description

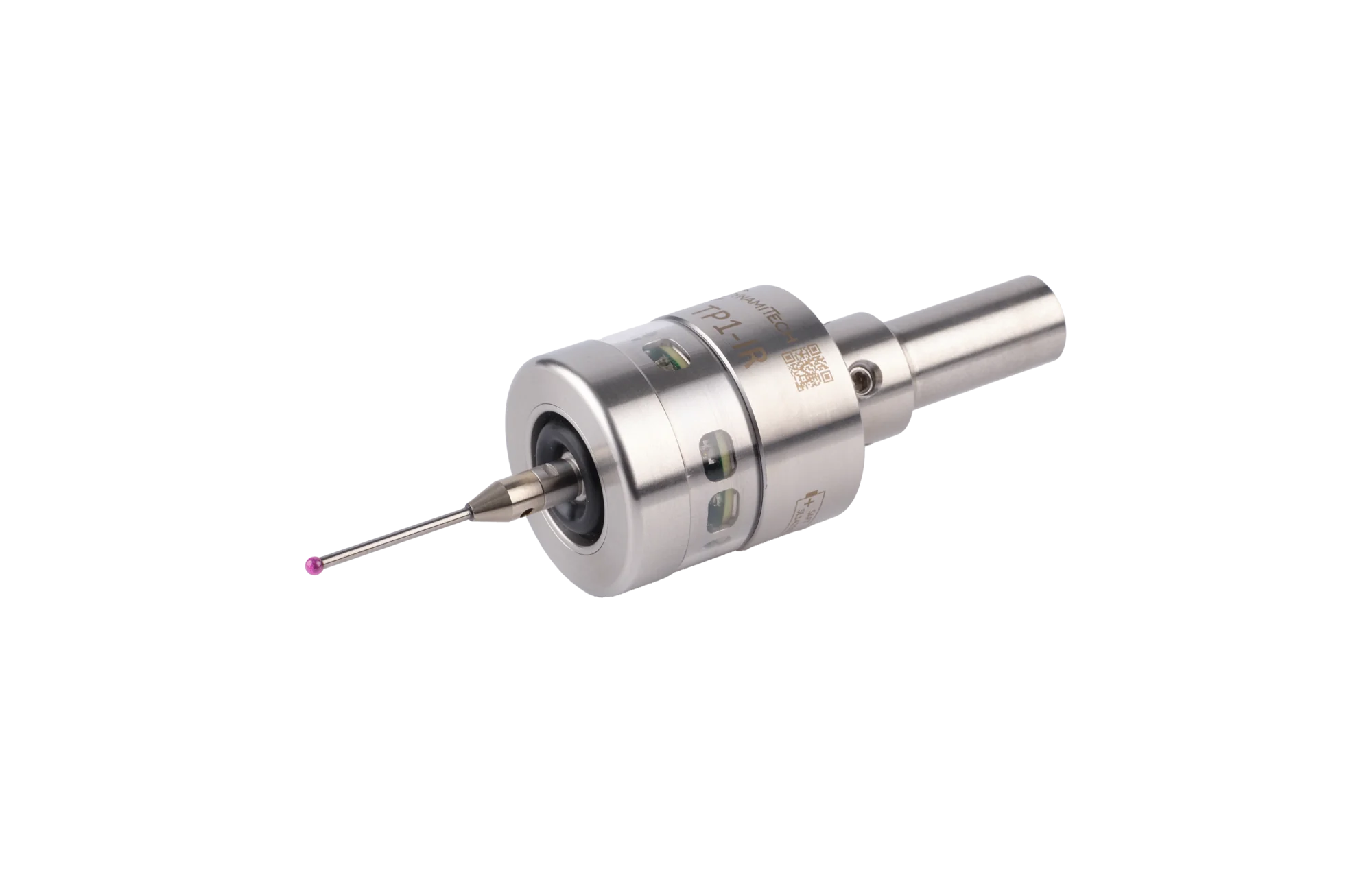

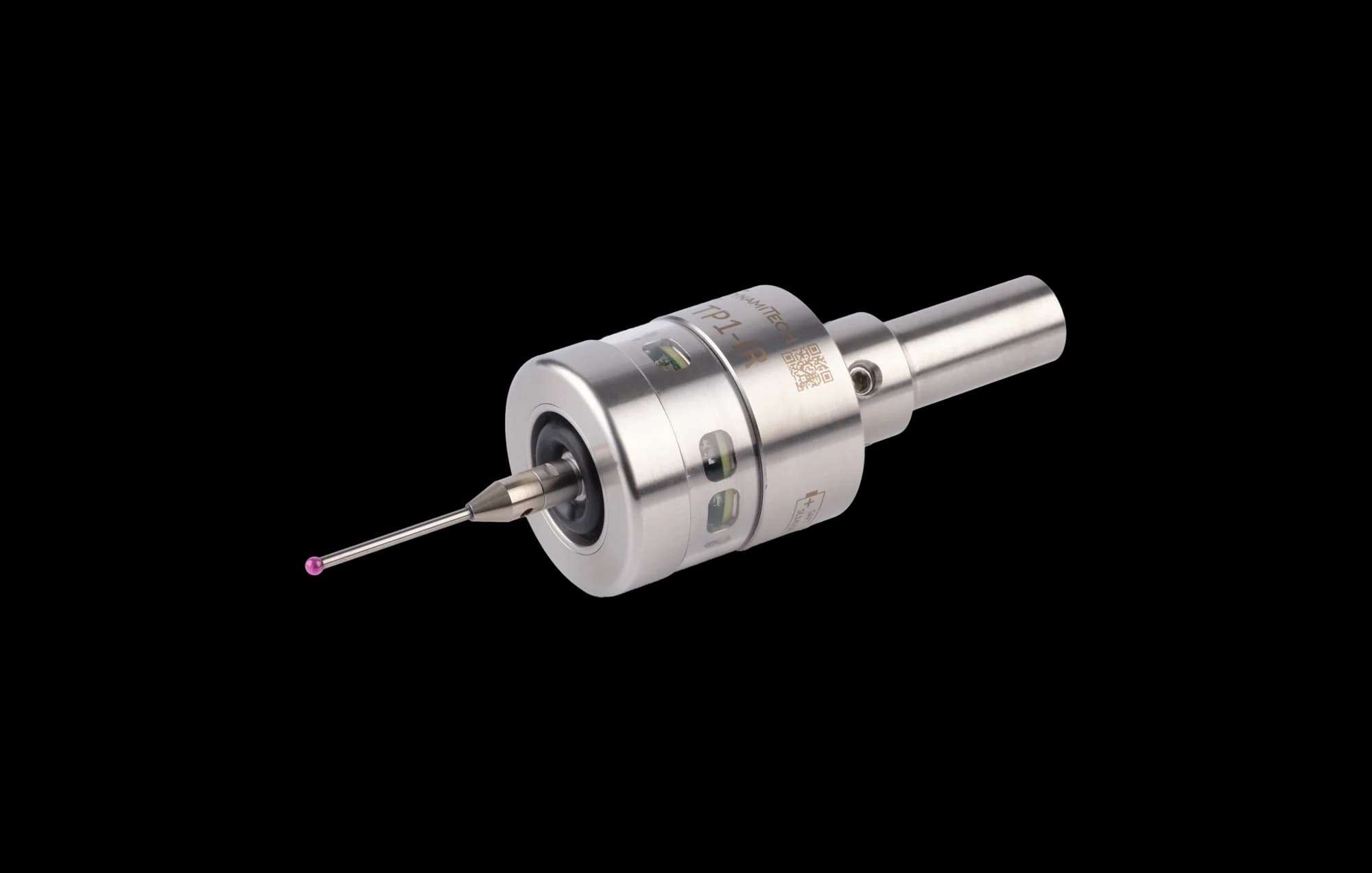

The TP1-IR wireless touch probe is used for precise workpiece setup and tool measurement on CNC machine tools or as a precision limit switch in automation. Signal transmission between the probe and receiver is via infrared light. The probe can be fitted with any touch stylus with M4 thread. To install the TP1 touch probe in the machine spindle (use as a workpiece probe), the CS16 clamping shank must be purchased separately — it allows precise centering of the stylus while the spindle rotates. For mounting the TP1 touch probe on the machine table (use as a tool probe), the BP58 base plate is available. When purchasing the TP1 touch probe together with the CS16 clamping shank, BP58 base plate and any touch stylus, you will receive a complete pre-centered assembly ready for immediate installation without further adjustment.

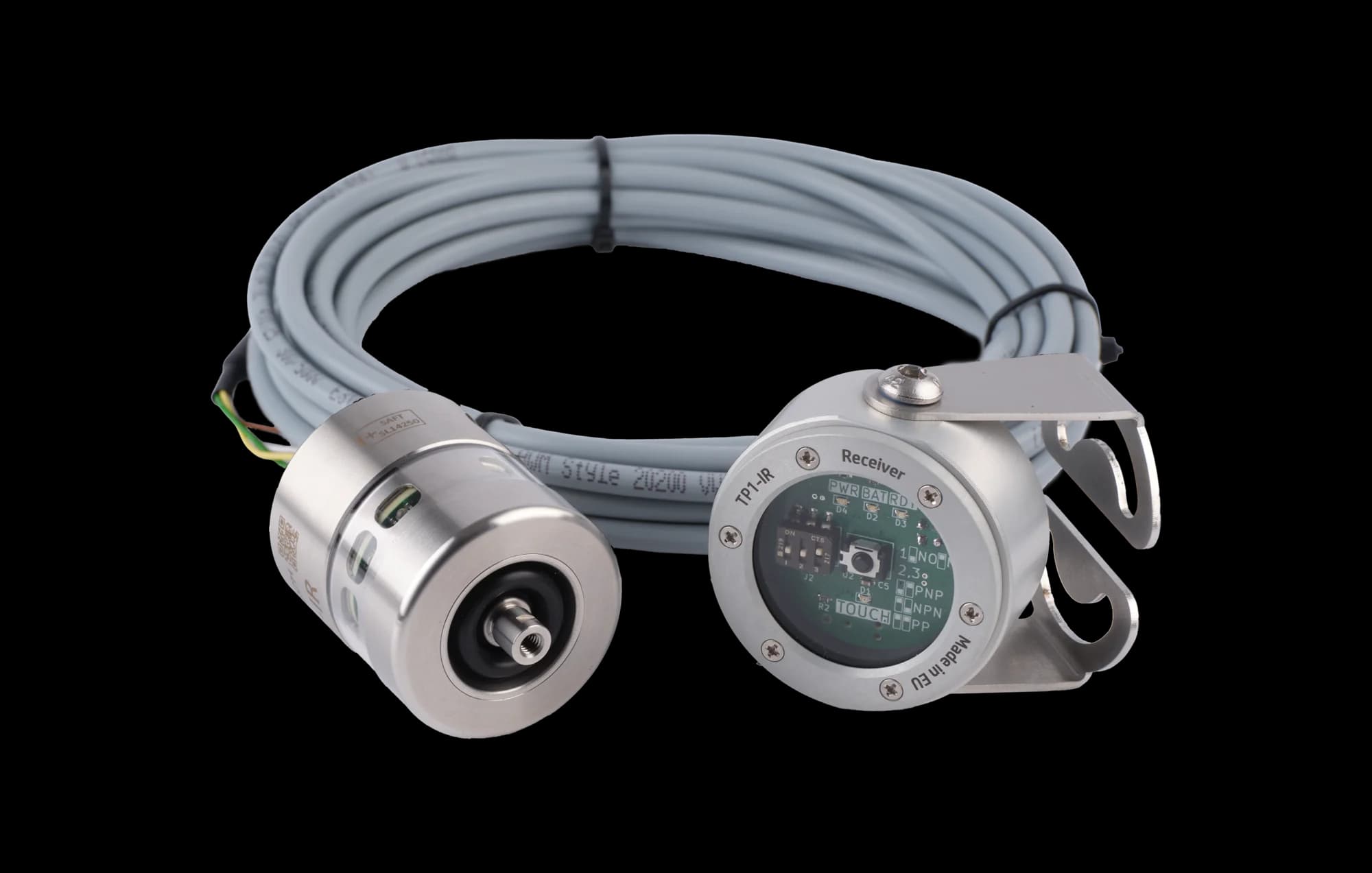

Package Contents
1× TP1-IR touch probe (transmitter)
Kinematic 3-point seating, 0.005 mm repeatability, IP65

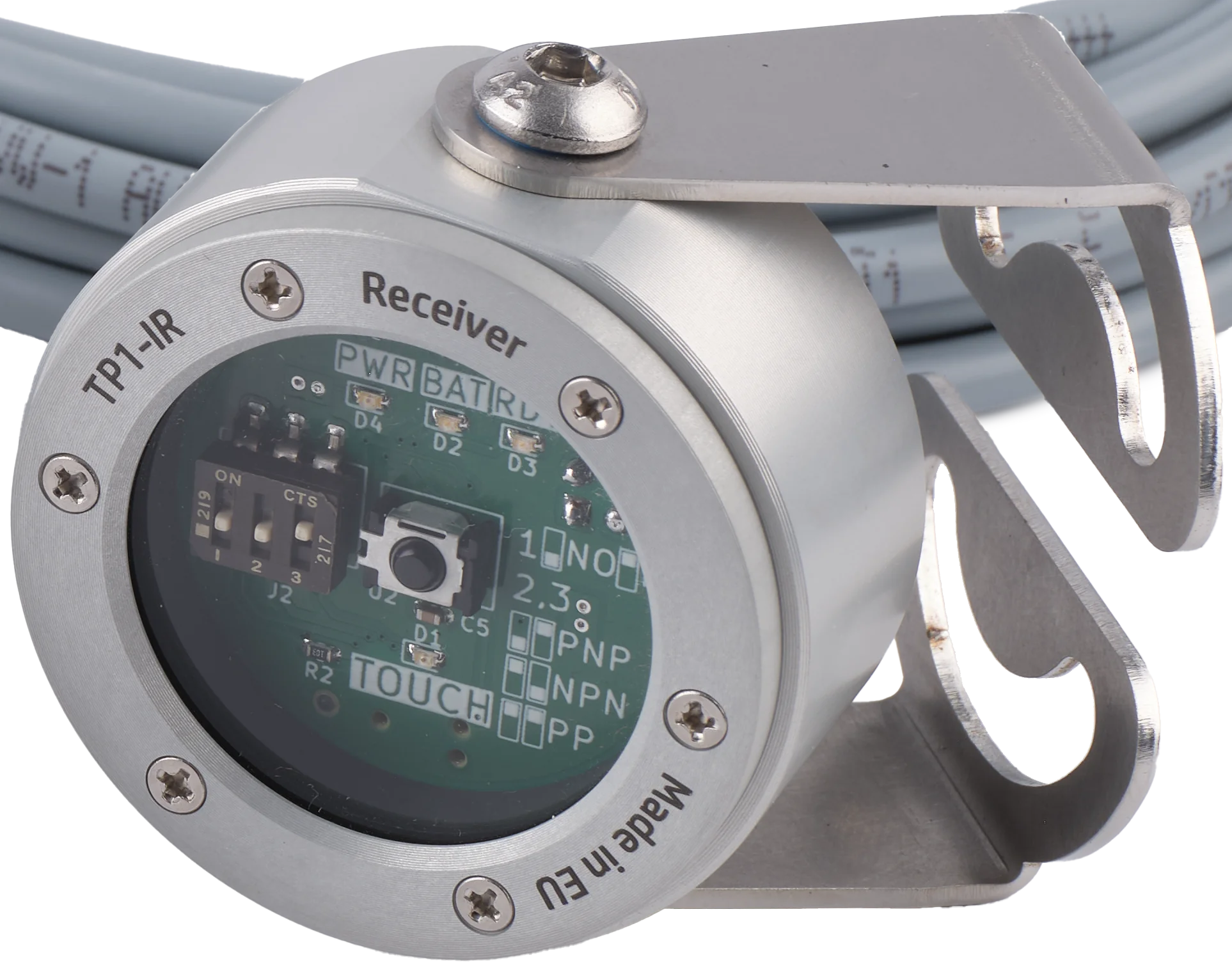

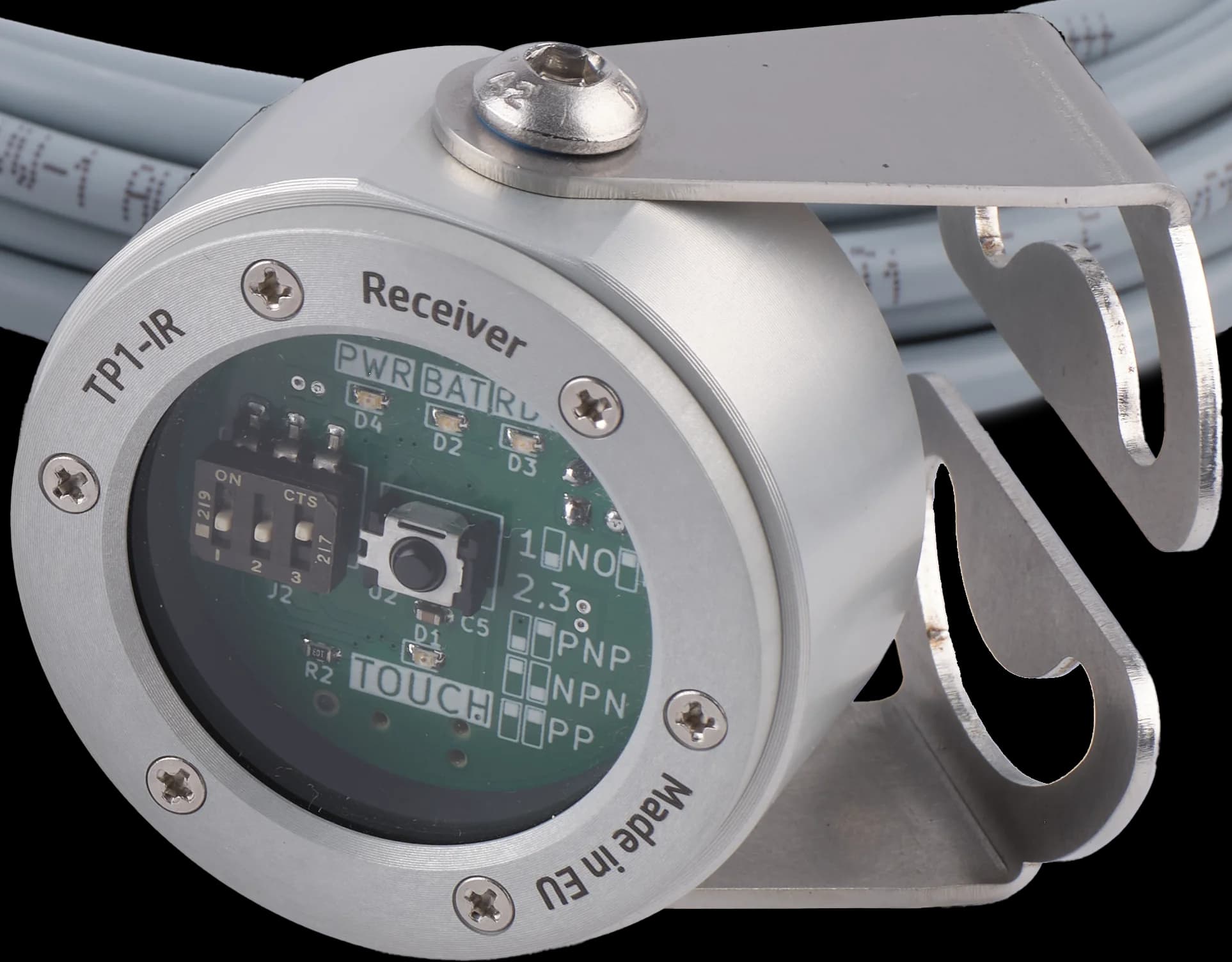

1× TP1-IR receiver with bracket
5 m cable, 4 × 0.25 mm², Touch and Ready output signals
1× SAFT LS14250 battery
Lithium 3.6 V / 1.2 Ah, ≈ 800 days in standby
1× Adjustment tool set
For centering the stylus and adjusting the probe
An M4 stylus, the CS16 clamping shank and the BP58 base plate are ordered separately.
Technical Specifications
Product classification
| Product family | TP1 |
|---|---|
| Product type | Touch Probe |
| Connection | Wireless |
| Cable | None |

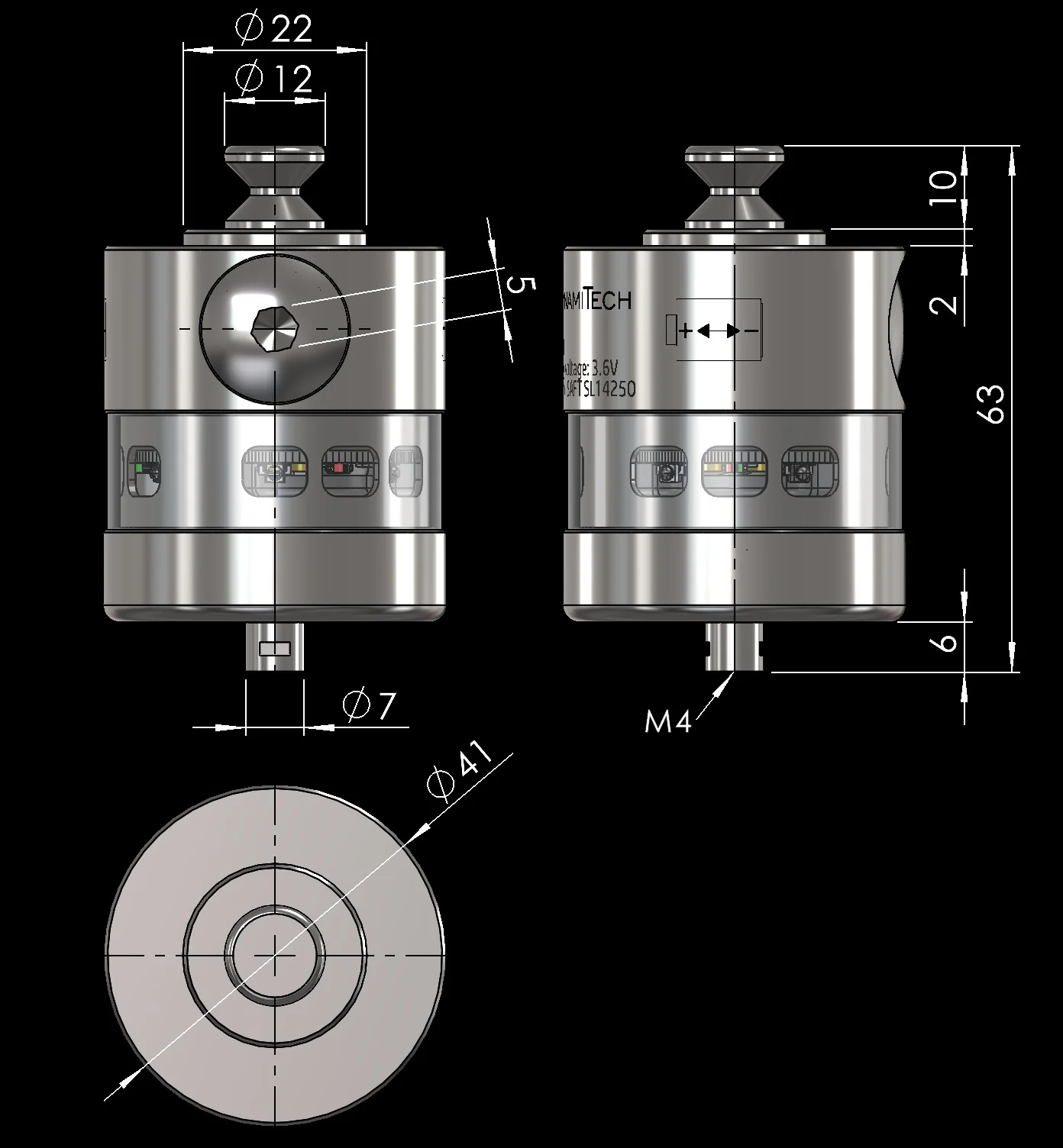

TP1-IR (Transmitter – Touch Probe)
| Measuring principle | Kinematic 3-point seating |
|---|---|
| Measuring direction | ±X, ±Y, -Z |
| Measuring force XY / Z (stylus L30 mm) | 2 N / 6 N |
| Maximum deflection XY / Z | ±10° / 4.5 mm |
| Repeatability (stylus L30 mm) | 0.005 mm |
| Maximum measuring speed | 2 m/min |
| Weight | 260 g |
| Protection rating | IP65 |
| IR communication type | 950 nm |
| Maximum range (conditions dependent) | 5 m |
| Supply voltage SAFT LS 14250 | 3.6 V / 1.2 Ah |
| Battery life in standby | ≈ 800 days |
| Battery life in operating mode | ≈ 150 h |
| Storage temperature | -20 ... +70 °C |
| Operating temperature | +10 ... +40 °C |

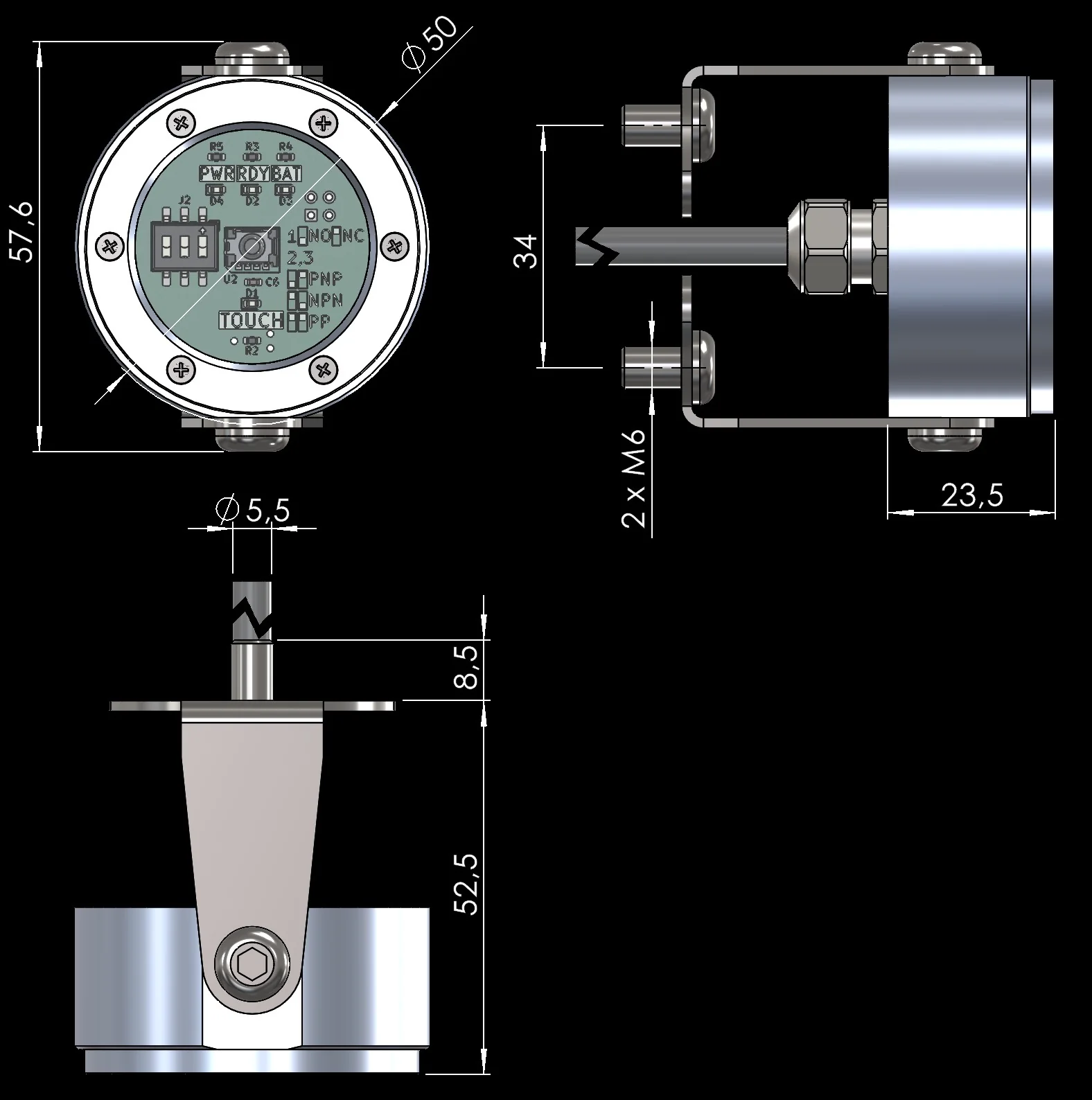

TP1-IR (Receiver)
| Supply voltage VCC | 5 – 24 VDC |
|---|---|
| Power consumption | < 100 mA |
| Maximum output current | 300 mA |
| Cable length | 5 m |
| Connection cable | 4 x 0.25 mm² |
| Weight | 135 g |
| Storage temperature | -20 ... +70 °C |
| Operating temperature | +10 ... +40 °C |
| Output signals | Touch, Ready |
